LITTEL MULTI-SWITCH – SERIES 36000, 37000 & 38000 FEATURES
PHONE: 773 792-2700
304
SWITCHES
?
* Please visit the product pages on our website for the most up-to-date product information
MULTIPLE-STATION SWITCHES (continued)

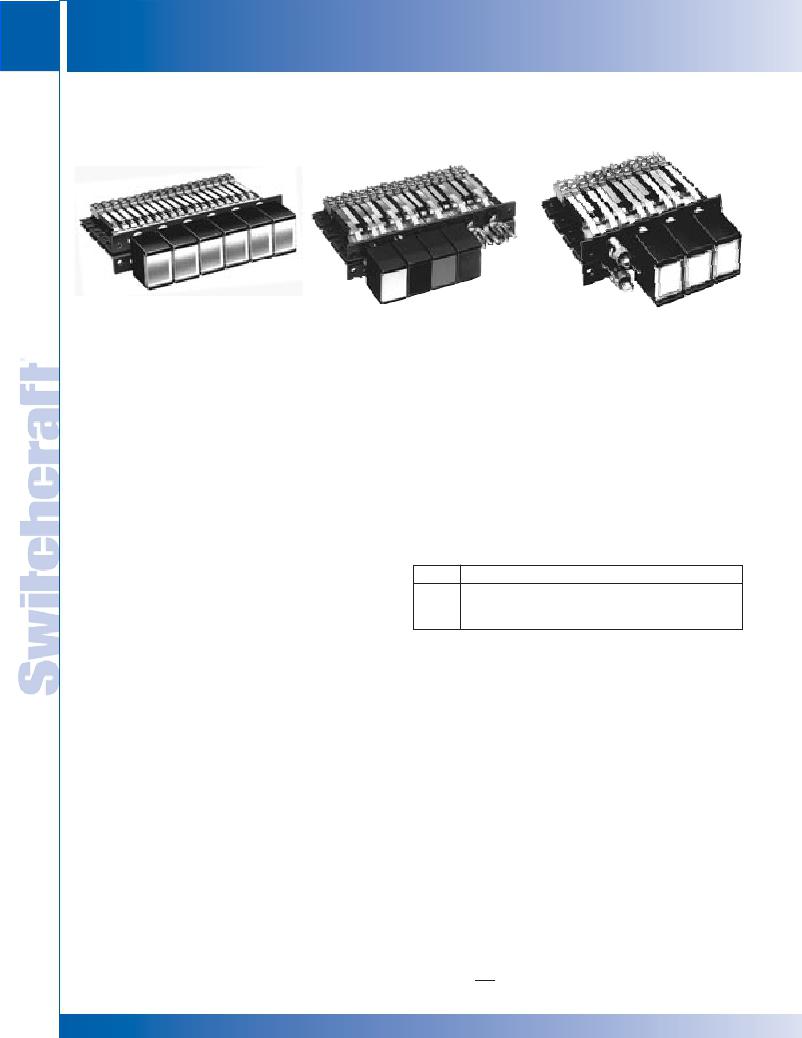

LITTEL ? MULTI-SWITCHES
SERIES 36000, 37000, 38000
SERIES 36000 - NON-ILLUMINATED
SERIES 37000 - SINGLE LAMP
SERIES 38000 - TWIN LAMPS
SERIES 36000
Identical to Series 37000, except non-illuminated. Pushbuttons
match Series 37000 and 38000 Switching up to 6PDT.
SERIES 37000
Same as Series 35000, but features large, rectangular face
pushbuttons, illuminated by one lamp and having large legend
area. Switching is up to 4PDT. Switch stations are on .625"
(15.88 mm) centers, and depth behind panel is 2.313" (58.75
mm). Black pushbutton housings have white translucent
inserts, white legend insert, two support inserts, and transpar-
ent display screen. Other pushbuttons and combinations are
possible; see pages 316 and 317.
On 2-C per station switches, each station includes two,
5PDT circuitry (1 pole is required for lighting lamps). two, T 1-3/4
lamps per station are used (lamps are not supplied). Ganged
assemblies and solenoid releases are available;
contact Switchcraft. See pages 316 and 317 for special effects
display screens and inserts.
LIGHTING
Series 37000 and 38000 can be used in control systems where
the light is either “ON”, or “OFF” or permanently “ON”.
One or any combination of the three lighting arrangements
listed below can be specified on a switch. NOTE: Standard
switches ordered from tables can be wired for “L”, “M” or “N” type
lighting.
83P switch stacks and one H83P lighting stack, and one
convenience lighting spring. Contact ratings: 2A, 200W
maximum AC non-inductive load.
On 4-C per station switches, each station has 4, 83P switch
stacks, one H83P lighting stack, and one convenience lighting
TYPE
“L”
“M”
“N”
DESCRIPTION
Pushbuttons light in the “IN” position.
Pushbuttons light in the “OUT” position.
Pushbuttons light in the “IN” and “OUT” positions.
spring. “L” and “M” lighting arrangements can be effected by
wiring directly to the H83P and H lighting stacks.
Each switch station uses an industry standard T 1-3/4 lamp
(not supplied). Special features such as ganged assemblies,
solenoid release, and T-1 lamp adapter are available; contact
Switchcraft. See pages 316 and 317 for special effects display
screen and inserts.
SERIES 38000
Similar to Series 37000, except features twin lamp illumination
at each station for redundant or 2-color, split-face (alternate)
lighting.
On 2-C per station switches, each station includes 3, H83P
lighting switch stacks and 1 lighting spring. This provides up to
3PDT circuitry (1 pole is needed for lighting lamps; lamps not
supplied). Contact ratings: 2A, 200W maximum AC non-induc-
tive load.
On 4-C per station switches, each station has three, H83P,
two, 83P switching stacks and one lighting spring. This offers
ORDERING
STANDARD SWITCHES
Order by part number from tables.
SPECIAL SWITCHES
Many special mechanical functions, features and accessories
are available. Contact Switchcraft for special order items.
? Ganged Assemblies ? Special Mechanical Functions
? Special Color Displays ? Pushbuttons
? Legends ? Switch Stacks
? Wiring Lighting Options ? PC and Wire-wrapping Terminals
? Accessories
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
